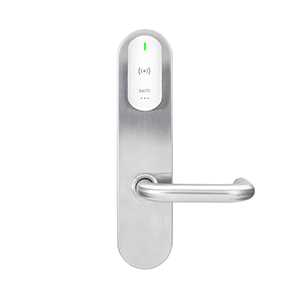

Widebody Escutcheon Mortise HB38 Passage

HB38
ADA Compliant: True
BHMA Certified: True
UL C/US Listed: True
Warnock Hersey C/US: True
Contact Hager for Price

Specifications

Applications
  • High traffic openings
  • Interior applications
  • Exterior applications (weather seal required)
  • Fire doors
Certifications

Mortise Lock

  • BHMA Certified ANSI A156.13, Series 1000, Grade 1, Operational and Security
  • UL/cUL Listed for all functions up to 3 hours for "A" label single doors
  • UL 10C Positive Pressure Rated
Depth
3.1"
Door Thickness

1-3/4" (Other thicknesses available upon request)

Escutcheon Type
Blank - no locking function
Functions

Passage

Height
11.4"
Lever Options

 Archer, Joshua, William, Withnell (see lever options under Related Files)

Lock Types

3800 Series Mortise Locks (mechanical)

Management Software

Salto ProAccess SPACE

Maximum Number of Doors Per System
64000
Maximum Number of Users Per Door
4 Million
Mechanical
  • EN 1634-1,
  • UL10C (3 Hour)
Product Description

HS4 Wide Body Escutcheon Mortise HB38

Warranty

Hager 3800 Series Mortise Lock - Lifetime

Width
2.6"

Template Files

  Name Download File type
HS4 Mortise Cyl Escutcheon Template - 01086.pdf 120 KB
.pdf
HS4 Locking Kit with Mating Wide Body Escutcheon DR Prep- T-LS02308-Rev01.pdf 90 KB
.pdf
HS4 Wide Body Escutcheon Mortise Lock Kit Template - T-LS02198.pdf 39 KB
.pdf

Instructions

  Name Download File type
HS4 Mortise/Cylindrical Escutcheon Installation Instructions - 201082.pdf 497 KB
.pdf
HS4 Outdoor Gasket Installation Instructions - 220873.pdf 214 KB
.pdf
HB38 Mortise Locking Kit Installation Instructions with Mating Escutcheon - I-LS02179-Rev01.pdf 2464 KB
.pdf

Related Files

  Name Download File type
HS4 Lever Options - HS4_Lvr_Opts_2019.pdf 475 KB
.pdf
HS4 Lock Functions and Platform Descriptions - HS4_LS_Func_Plat_Desc.pdf 117 KB
.pdf
Door Detector Installation Guide Wood Doors - 220406-ED0.pdf 255 KB
.pdf
Door Detector Installation Guide Wood Doors - 220406-ED0.pdf 252 KB
.pdf
