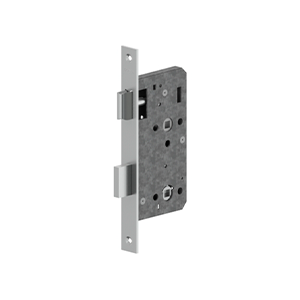

3800U-55B

3800U-55B
Contact Hager for Price

Specifications

Accessories
2-669-0736 - Bathroom Turn Indicator
Backsets
55mm
Box Quantity
1
Case Quantity
20
Certifications
  • EN 12209:2003 / EN1634-1:2000 (4 Hour Fire Rated)
  • CE Classificaiton 3X510F-BG20
  • CertiFire CF5283
CTC
72mm
Deadbolt Throw
20mm
Faceplate Height
235mm
Faceplate Width
24mm
Fasteners
  • Two (2) 4mm x 25mm FPHWS
  • Three (3) 3.5mm x 20mm FPHWS
Finishes
US32D
Functions
Bathroom Indicator Function
Includes
Mortise lock body, strike plate and fixing screws
Latchbolt Throw
12.5mm
Material
Stainless Steel Latch, Deadbolt and Faceplate
Notes
  • Hager Euroline products are not ANSI certified.
  • Cylinders and lever sold separately.
  • Field reversible, non-handed.
Product Description
Bathroom Mortise Lock
Strike Height
172mm
Strike Width
24mm w/Out Lip. 39mm w/ Lip
Warranty
Three-year

Template Files

  Name Download File type
3800U Series Template LH-RHR - T-LS01223.pdf 486 KB
.pdf
3800U Series Template RH-LHR - T-LS01224.pdf 490 KB
.pdf

Instructions

  Name Download File type
3800U Series Installation Instructions - I-LS01225.pdf 262 KB
.pdf

Related Files

  Name Download File type
3800U-55B Dimensions and Exploded View s-ls01030.pdf 122 KB
.pdf
3800-55L EN Certification - Hager_144028_Issue5.pdf 85 KB
.pdf
3800U-55B Certification ag0248-3800u-related_files.pdf 299 KB
.pdf
