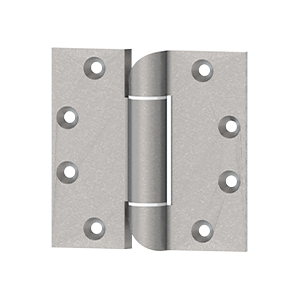

IHTHB953 - 3 KNUCKLE

IHTHB953
Contact Hager for Price

Specifications

Applications

For use on heavy weight doors ranging from 250-600 lbs.

Box Quantity
3
Case Quantity
24
Certifications

Tested to ANSI A5111

Fastener Size - Machine
1/2" x 1/4-20" TORX
Gauge
See Sizing Chart Options
Height
See Sizing Chart Options
Knuckles

3

Material

Stainless Steel with Stainless Steel Pin

Notes
  • Two concealed, maintenance-free bearings.
  • Investment cast.
  • Security torx fasteners.
  • Welded, Anti-ligature, Hospital tip and reverse security stud are standard.
Product Description

Full Mortise, Concealed Bearings, Heavy Weight

Width
See Sizing Chart Options

Template Files

  Name Download File type
ETW with Reverse Safety Stud - 4.5in Template T554-Rev08.pdf 83 KB
.pdf
Full Mortise Reverse Safety Stud Hinges - Height: 4 1/2 - Template t556 63 KB
.pdf
ETW with Reverse Safety Stud - 114mm - Template T-554M-Rev08.pdf 213 KB
.pdf

Size Details

  Name Download File type
Size Options Commercial Hinge_Detention Hinges_SizeOptions.pdf 115 KB
.pdf
