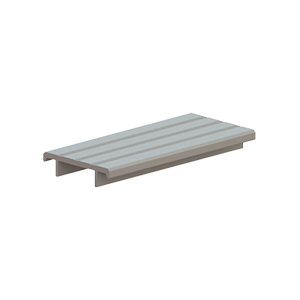

505S - 1-13/16in. Wide

505S
ADA Compliant: True
BHMA Certified: True
UL C/US Listed: True
Contact Hager for Price

Specifications

Fasteners

#10 x 1-1/2” sheet metal screws, other screw types and anchors available upon request

Finishes

MIL, DBA, GLD

Fire Rating
UL Listed
Height
7/16" (11.1 mm)
Notes
  • MIL finish thresholds are supplied with zinc plated screws
  • Color anodized thresholds are supplied with screws plated to match
Options

Available with Sure-Step non-slip abrasive coating

Product Description

1-13/16" Carpet Threshold

Warranty

Five-Year Warranty

Width
1-13/16" (46.1 mm)

Instructions

  Name Download File type
Threshold Installation Instructions 6699-0011-Rev05.pdf 80 KB
.pdf

CAD Files

  Name Download File type
505S CAD - PDF 505s_pdf.pdf 76 KB
.pdf
505S CAD - DXF 505s_dxf.dxf 677 KB
dxf
505S CAD - DWG 505s_dwg.dwg 309 KB
dwg
