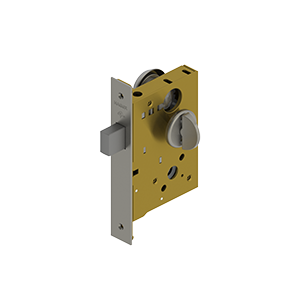

3863S - Classroom (F29)

3863S
Hager Lifetime Warranty: True
UL C/US Listed: True
Contact Hager for Price

Specifications

Applications
  • Heavy Duty Commercial
  • Industrial
  • Institutional
Backsets

2-3/4" (70mm)

Cylinders/Cores
  • Brass - keyed different - Schlage C keyway - standard
  • Drilled 6-Pin, Keyed 5-Pin - standard
  • Other keying options, including keyed 6-pin, available from factory
  • Zero bit cylinders will be 6 pin keyed - standard
  • SFIC mortise housings available
  • SFIC unc
Deadbolt

1" (25 mm) throw - stainless steel

Door Thickness
  • 1-3/4" - 2" (45 mm - 51 mm)
  • Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep
Finishes
  • US3, US4, US10B, US26 and US26D
  • US3, US4 and US26 subject to extended lead time
Functions

Classroom (F29)

Handing
Required
Keyway
Schlage C - Standard, other keyways optional
Lock Chassis

4-5/16" x 6" x 1" (110 mm x 152 mm x 25 mm)

Notes

Self adjusting case for beveled doors

Strikes

1-1/4" x 4-7/8" (32 mm x 124 mm) no-lip strike - standard

Warranty

Lifetime
