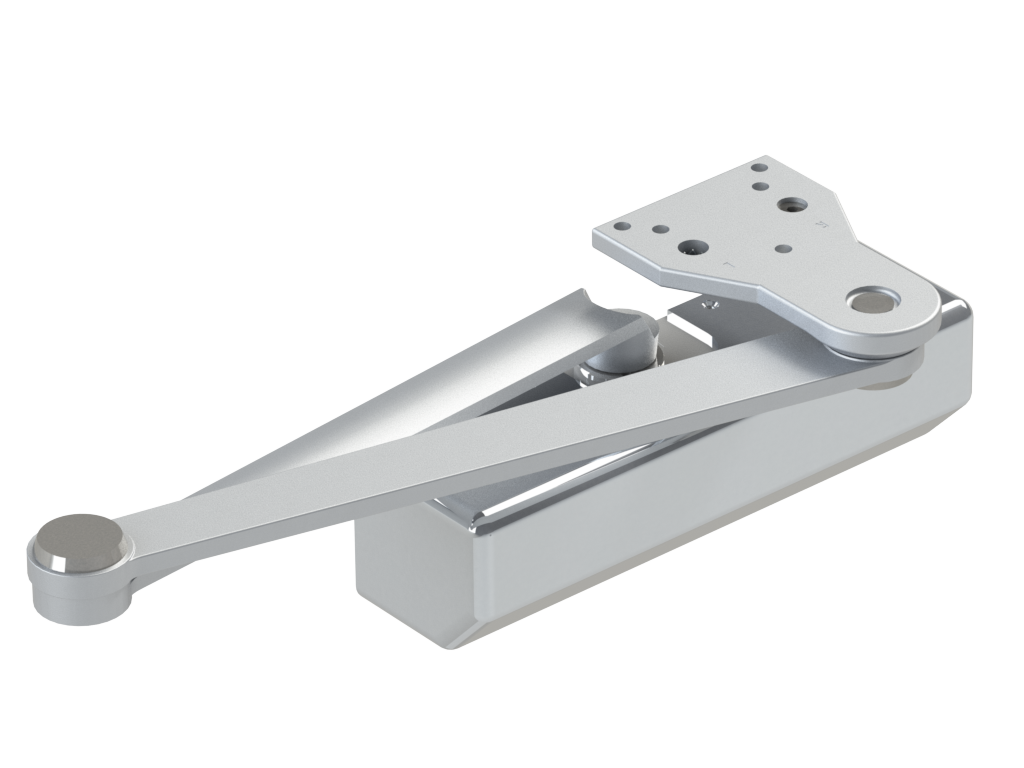

5300 CLOSER X EXTRA HEAVY DUTY STOP ARM - HDS

5300 HDS
ADA Compliant: True
BHMA Certified: True
Hager Lifetime Warranty: True
UL C/US Listed: True
UL Certified EPD: True
Contact Hager for Price

Specifications

Applications
  • Grade 1 Heavy Duty Surface Door Closer adjustable sizes 1-6
  • Ideal for schools, hospitals, and other high-use environments
  • Parallel arm mount only
Arm
5907 - Extra Heavy Duty Stop Arm
Arms & Brackets

15% power adjustment in standard arm for regular and top jamb mount

Box Quantity
1
Case Quantity
6
Certifications
  • BHMA Certified ANSI A156.4, adjustable sizes 1-6
  • ADA compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for up to 3 hours
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • 5300 Door Closer EPD
Cover

Full plastic cover and pinion cap

Door Thickness
  • 1-3/4" (44 mm) - standard
  • 1-3/8" - 2-1/4" (36 mm - 57 mm) - optional
Fasteners
  • Self-reaming, self-tapping wood and machine screws
  • Sex nuts and bolts
Handing
Non-handed
Material

Forged steel arm

Maximum Door Weight

250 lbs.

Notes
  • To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
  • The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
  • Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
  • If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
  • Accessories may not be available in all finishes. Please contact Hager for availability and lead time.
Product Description

5300 Closer x 5907 Extra Heavy Duty Stop Arm

Springs
  • One piece seamless steel spring tube
  • Double heat-treated, steel-tempered springs
  • Precision-machined, heat-treated steel piston
Use

Ideal for schools, hospitals, and other high-use environments

Valves
  • Adjustable latching and sweep speed valves
  • Adjustable backcheck valve - Standard
  • Delayed action valve - Optional
  • Staked valves - Standard
Warranty

Lifetime warranty

Template Files

Instructions
