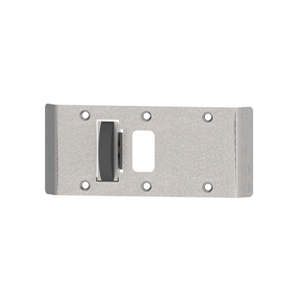

456 Combination Rescue Door Stop and Two Way Strike Plate

456

Contact Hager for Price

Applications

Combination Rescue Door Stop and Two Way Strike Plate for Center Hung Doors.

Box Quantity

Certifications

ANSI A1882

Door Thickness

1-3/4"

Fastener Size - Machine

1/2" x 8-32"

Features

Handed

Finishes

US26D

Gauge

See Sizing Chart Options

Material

Brass

Notes

For center hung doors.
To be used with Hager 510, 511, and 512 pivots.
Handed (Specify when ordering).
Door release allows doors to be opened in both directions without damage to frame.
Standard latchbolt cutout is 1-1/4" x 11/16" (32 mm x 17 mm).
Standard strike plates are optimized for cylindrical locks/latches mounted on 1-3/4" thick doors.
Mortise lock applications require special latch cutout location (consult specific manufactures for variations of cutout dimensions).
Frame width: 6-3/4" x 2-3/4"

Options

Other sizes available, contact Hager Customer Service for more information.

Product Name

Combination Rescue Door Stop and Two Way Strike Plate Center Hung Doors

Width

See Sizing Chart Options

	Name	Download	File type
	456 Specials Template T456-Rev04.pdf	109 KB	.pdf
	456 Template T368-Rev03.pdf	56 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_Piv_Size_Opt_12.pdf	116 KB	.pdf
