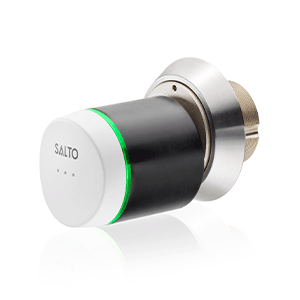

GEO HG02 Mortise Cylinder

HG02

Contact Hager for Price

Specifications

Additional Options

IP66 - dust and water resistant rating, recommended for outdoor use
ADA Grips - black, blue, green, red, white, yellow
Rigid Grips - black, green, red, white, yellow

Applications

Where fitting an escutcheon is not possible. Examples include: antique doors, post boxes, server racks, cabinets, padlocks, suitable for emergency exits

Audio Feedback

Optional

Certifications

Declaration of Conformity CE
IP55

Credential Technologies

Mifare (DESfire EV1, Plus, Classic - ISO/IEC14443)
HID iClass®
NFC

Depth

1.6" from mechanical cylinder face

Electromagnetic Compatibility

ETSI EN 301 489-1 (2011-09); ETSI EN 301 489-3 (2002-08)

Environment

IP55 (IP66 optional)

Finishes

US26D - Satin Chrome
US26 - Bright Chrome
US3 - Bright Brass
US4 - Satin Brass
BLK - Satin Chrome Black
BIO - Satin Chromium BioCote (antimicrobial)

Lock Types

Most mortise locks

Management Software

Salto ProAccess SPACE

Maximum Number of Doors Per System

65,000

Maximum Number of Users Per Door

4 Million

Operating Temperature

-4º F to 140º F

Platform

SVN - standard
KS

Power Source/Connection

(1) lithium CR2 battery 40,000 - 60,000 transactions (batteries can be replaced without cylinder removal)

Product Name

HS4 GEO Mortise HG02 Cylinder

Programmable Lock Modes

Programs can be customized by user and by opening
Standard - locked at all times
Automatic Opening - 8 pairs of "hands-free" timed lock and unlocks per day with holidays
Toggle - present card to lock, present card to unlock
Timed Toggle - present card to lock, present card to unlock depending on schedule

Security Requirements

EN 60950-1 (2007)

Use of Radio Frequency Spectrum

ETSI EN 302 291-1 V1.1.1 (2005-07); ETSI EN 302 291-2 V1.1.1 (2005-07)

Visual Feedback

Light Ring (green indicates granted access and red indicates denied access)

Warranty

1 Year

Instructions

	Name	Download	File type
	Geo Blocking Screw Installation - 221091.pdf	141 KB	.pdf
	GEO Mortise Cylinder Installation Instructions geo_mortise_cylinder_installation-221108.pdf	379 KB	.pdf

Related Files

	Name	Download	File type
	HS4 Lock Functions and Platform Descriptions - HS4_LS_Func_Plat_Desc.pdf	117 KB	.pdf
