5N

Contact Hager for Price

Box Quantity

Case Quantity

Certifications

Clearance

1- 1/2"

Door Thickness

1-3/4"

Fasteners

Two 1/4" - 20 thru bolts with finish washers

Finishes

US3, US4, US10, DBZ, US26, US26D, US28, US32, US32D

Material

Aluminum, Brass, Bronze, Stainless Steel

Notes

Not suitable for back to back mounting

Optional Features

May be combined with a plate to make a pull plate

Product Description

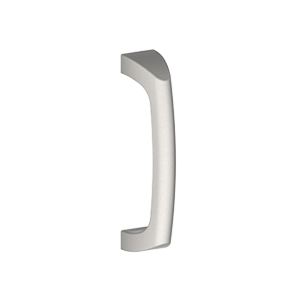

Cast Pull

Projection

1-15/16" (49.2 mm)

Pull Clearance

1-7/16" (36.5 mm)

Pull CTC

5-1/2" (139.7 mm)

Pull Diameter

5/8" x 1-3/16" (16 mm x 30 mm)

Pull Overall

6-1/8" (155.6 mm)

	Name	Download	File type
	5N Template t-5n-5n-template.pdf	198 KB	.pdf

	Name	Download	File type
	Hager EPD - Pulls and Cylinder Pulls 101.1	926 KB	.pdf
