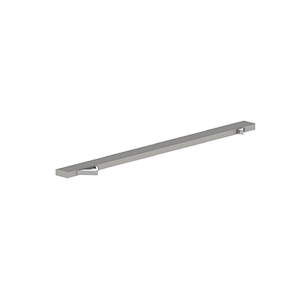

297D

Contact Hager for Price

Case Quantity

Certifications

Complies with ANSI A156.3 Type #21A

Fasteners

Four #8 x 1" combo screws, Seven 12 - 24 x 1-1/4" TPHMS

Finishes

Black Powder Coat

Material

1-5/8" x 5/8" (42 mm x 16 mm) Steel

Notes

Coordinator may not span the entire length of the stop
297F Filler Bar, cut to length by factory to match customer's total opening width, may be needed to fill extra space
Optional mounting bracket 297B may be used when mounting other soffit applied hardware
Non-handed
Compatible with flush bolts
Do not use spring hinges with coordinating device

Product Description

Coordinator with Filler Bar

Stop

Height 5/8" (16 mm)

	Name	Download	File type
	I-TA01357 [297D] [Door Coordinator Installation Instructions] [1].pdf	340 KB	.pdf

	Name	Download	File type
	How to Determine the Proper Coordinator Length 297d_ordering_information.pdf	186 KB	.pdf
