    329F

    329F
    Contact Hager for Price

    Specifications

    Box Quantity
    5
    Case Quantity
    30
    Certifications

    Meets ANSI A156.16 for L01301

    Fasteners

    Four #12-24 x 1" TPHMS, Three #14 x 1-1/2" FPHWS & anchors, Three 1/4 - 20 x 3/4" FPHMS w/ lead anchor, Four #12 x 1" TPHWS

    Finishes

    US3, US10B, US26, US26D

    Holder Projection
    1-15/16" (49 mm)
    Material

    Cast Brass

    Max Door to Floor Clearance
    1-5/8" to 2-1/16" (41 mm to 52 mm)
    Notes
    • Ideal for heavy traffic situations that require frequent hold open
    • For use on wood or metal doors and wood or concrete floors
    • Firm pull releases holding mechanism
    • Holder has vertical adjustment once mounted on the door

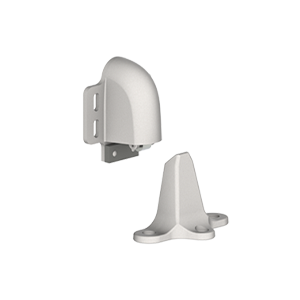

    Product Description

    Automatic Floor Stop and Holder

    Strike Size
    Floor strike 2"D x 4-32"L x 2-3/4"H (56 mm x 105 mm x 70 mm)

    Template Files

      Name Download File type
    		326F_327F_328F_329F Template - T-TA01171.pdf 106 KB
    		.pdf
