Meets ANSI A156.16 for L01301

Four (4) #12-24 x 1" TPHMS, Three (3) #14 x 1-1/2" FPHWS & Anchors, Three (3) 1/4 - 20 x 3/4" FPHMS w/ Lead Anchor, Four (4) #12 x 1" TPHWS

US3, US10B, US26D

Cast Brass

• For use on wood or metal doors and wood or concrete floors
• Ideal for heavy traffic situations that require frequent hold open
• Firm pull releases holding mechanism
• Holder has vertical adjustment once mounted on the door
• Holder base: 3-1/16" x 3-1/2" (78 mm - 89 mm)
• Holder projection: 1-15/16'' (49 mm)
• Floor strike: 2" x 4-3/32" (56 mm x 105 mm)
  Strike Height: 2-1/4" (57 mm)
• Max Door to Floor Clearance: 1-1/8” to 1-9/16” (29 mm x 40 mm)

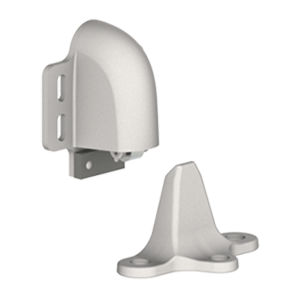

Automatic Floor Stop and Holder
