327F

327F
Contact Hager for Price

Specifications

Box Quantity
5
Case Quantity
30
Certifications

Meets ANSI A156.16 for LO1301

Fasteners

Four #12-24 x 1" TPHMS, Three #14 x 1-1/2" FPHWS & Anchors, Three 1/4 - 20 x 3/4" FPHMS w/ Lead Anchor, Four #12 x 1" TPHWS

Finishes

US3, US10B, US26D

Holder Base Height
3-1/2" (89 mm)
Holder Base Width
3-1/16" (78 mm)
Holder Projection
1-15/16" (49 mm)
Material

Cast Brass

Max Door to Floor Clearance
9/16" to 1-1/16' (14 mm x 27 mm)
Notes
  • Ideal for heavy traffic situations that require frequent hold open
  • For use on wood or metal doors. For use on wood or concrete floors
  • Firm pull releases holding mechanism
  • Holder has vertical adjustment once mounted on the door
Product Description

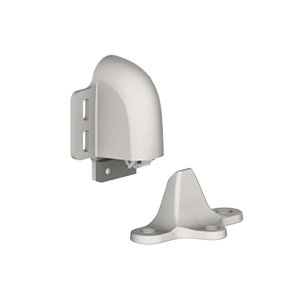

Automatic Floor Stop and Holder

Projection

1-15/16"

Strike Size
Floor strike 2"D x 44-3/32"L x 1-3/4"H (56 mm x 105 mm x 44 mm)

Template Files

  Name Download File type
326F_327F_328F_329F Template - T-TA01171.pdf 106 KB
.pdf
