326F

326F
Contact Hager for Price

Specifications

Box Quantity
5
Case Quantity
30
Certifications

Meets ANSI A156.16 for L01301

Fasteners

Three #14 x 1-1/2" FPHWS, three 1/4-20 x 3/4" FPHMS, three 1/4-20 lead anchors, four 12/24 x 1" TPHMS, and four #12 x 1" TPHWS

Finishes

US3, US10, US10B, US26, US26D

Holder Base Height
3-1/2" (89 mm)
Holder Base Width
3-1/16" (78 mm)
Holder Projection
1-15/16" (49 mm)
Material

Cast Brass

Max Door to Floor Clearance
1/2" (13 mm) or less
Notes
  • For use on wood or metal doors
  • For use on wood or concrete floors
  • Firm pull releases holding mechanism
  • Holder has vertical adjustment once mounted on the door
Product Description

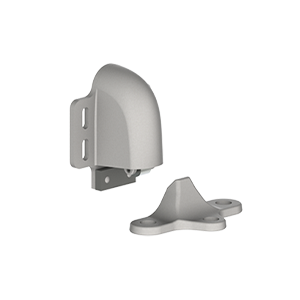

Automatic Floor Stop and Holder

Projection

1-15/16"

Strike Size
Floor strike 2"D x 4-3/32"L x 1-1/4"H (51 mm x 104 mm x 32 mm))

Template Files

  Name Download File type
326F_327F_328F_329F Template - T-TA01171.pdf 106 KB
.pdf
