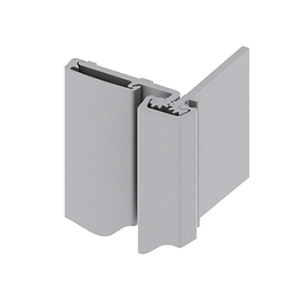

780-053

780-053
BHMA Certified: True
Hager Lifetime Warranty: True
UL Certified EPD: True
UL Listed: True
Contact Hager for Price

Specifications

Applications
  • Frame leaf alignment rib for proper hinge location
  • Security moldings
  • 1/8" (3 mm) inset
Clearance
  • 5/32" (4 mm) minimum recommended hinge side
  • Plus standard lockside clearance
Door Reinforcement
None required
Electric Modifications
Power Transfer Preparation (EPT2) or (EPT 10)
Fasteners
  • Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post)
  • Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
  • Additional Options Available upon request
Features
  • Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium
  • frequency doors
  • Frame leaf alignment rib for proper hinge location
  • Security molding
  • 1/8" (3 mm) inset
Finishes
CLR, DBZ, BLK
Fire Rating
Up to 3 hr. metal and 90 min. wood composite (with studs)
Frame Reinforcement
None required to 200 lbs. Heavier weight use 16-gauge channel.
Length
79", 83", 85", 95", 119"
Length Options
Standard and Custom
Material
Aluminum 6063-T6
Notes
EPD: Roton Continuous Hinges Environmental Product Declaration
Options
TIPIT® (see Roton accessories)
Product Description
Half Surface
Warranty
All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.
