• Door edge protection lip.
• Offset joint to clear casing.
• Frame leaf alignment rib for proper hinge location

• 5/16" (8 mm) hinge side
• Plus standard lockside clearance
• Refer to Door and Frame Dimensioning in the General Information section for further details

• Standard: Dril-Kwik® – #12-14 x 1-1/2" Flat Head Sheet Metal Screws
• Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
• Additional Options Available upon request

• For medium frequency, 1-3/8” (35 mm) thick solid core wood interior doors up to 100 pounds
• Door edge protection lip
• Offset joint to clear casing
• Frame leaf alignment rib for proper hinge location

CLR

79", 83", 85", 95", 119"

Standard and Custom

Aluminum 6063-T6

EPD: Roton Continuous Hinges Environmental Product Declaration

TIPIT® (see Roton accessories)

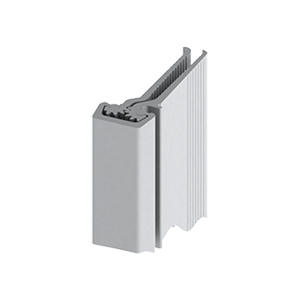

Concealed Leaf With Half Drill Quick and Half Wood fasteners1-3/8" Interior Wood Door

All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.
