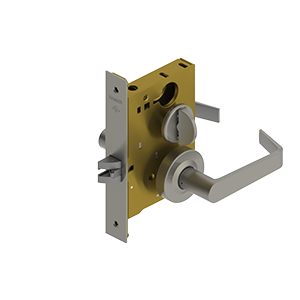

3844S - Privacy w/ Cointurn (F22)

3844S
ADA Compliant: True
BHMA Certified: True
Hager Lifetime Warranty: True
UL C/US Listed: True
Contact Hager for Price

Specifications

Applications
  • Heavy Duty Commercial
  • Industrial
  • Institutional
Backsets

2-3/4" (70mm)

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.13, Series 1000, Grade 1
CTC Length
3-5/8" (92mm)
Door Thickness

1-3/4" - 2" (45 mm - 51 mm) Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep

Exposed Trim
  • Cast Zinc -Standard
  • Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only
Finishes
  • US3, US4, US10B, US26, US26D, US32D*
  • *US32D look on a cast zinc lever
  • Withnell or William are the only lever options available in both zinc and stainless steel. For stainless steel, reference Withnell (WTS) or William (WLS) at the time of order.
  • US3, US4 and US26 subject to extended lead time
Functions

Privacy w/ Cointurn (F22)

Latchbolt Type

3/4" (19 mm) throw with anti-friction tongue, all stainless steel

Lever Options

Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell

Lock Chassis

4-5/16" x 6" x 1" (110 mm x 152 mm x 25 mm)

Notes
  • No exposed mounting screws
  • Concealed thru-bolts
  • Body is easily field reversible (shipped LHR by default)
  • Self adjusting case for beveled doors
Options
  • Tactile Warning
  • Lead Lining
  • Split Finish
  • Factory Handing Available (if specified)
Rose Diameter
2-7/16" (62mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty

Lifetime
