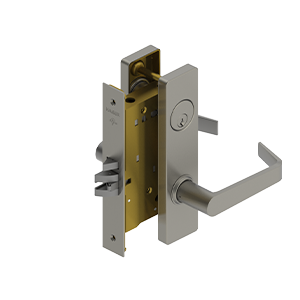

3861E - Apartment Entrance (F09)

ADA Compliant: True
BHMA Certified: True
Hager Lifetime Warranty: True
UL C/US Listed: True
Contact Hager for Price


  • Heavy Duty Commercial
  • Industrial
  • Institutional

2-3/4" (70mm)

  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.13, Series 1000, Grade 1
CTC Length
3-5/8" (92mm)
  • Brass - keyed different - Schlage C keyway - standard
  • Drilled 6-Pin, Keyed 5-Pin - standard
  • Other keying options, including keyed 6-pin, available from factory
  • Zero bit cylinders will be 6 pin keyed - standard
  • SFIC mortise housings available
  • SFIC uncombinated or combinated, brass 6- or 7-pin cores sold separately - standard
  • LFIC mortise housings available
  • LFIC zero bitted or combinated, brass 6-pin sold separately – standard. Schlage C keyway only.
  • Schlage "L" cam is used standard on Hager mortise locks
Door Thickness
  • 1-3/4" - 2-1/2" (45 mm - 64 mm)
  • Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep
1-15/16" x 8" (50 mm x 203 mm)
Exposed Trim
  • Cast Zinc -Standard
  • Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only
  • US3, US4, US10B, US26, US26D, US32D*
  • *US32D look on a cast zinc lever
  • Withnell and William are the only lever options available in both zinc and stainless steel. For stainless steel, reference Withnell (WTS) or William (WLS) at the time of order.
  • US3, US4 and US26 subject to extended lead time

Apartment Entrance (F09)

Schlage C - Standard, other keyways optional
Latchbolt Type

3/4" (19 mm) throw with anti-friction tongue, all stainless steel

Lever Options

Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell

Lock Chassis

4-5/16" x 6" x 1" (110 mm x 152 mm x 25 mm)

  • No exposed mounting screws
  • Concealed thru-bolts
  • Body is easily field reversible (shipped LHR by default)
  • Self adjusting case for beveled doors
  • Tactile Warning
  • Lead Lining
  • Split Finish
  • Factory Handing Available (if specified)
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
