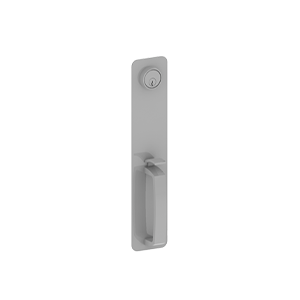

47PT - THUMBPIECE PULL PLATE, ENTRANCE

47PT
Contact Hager for Price

Specifications

Applications
For use with 4700 Series Rim and SVR exit devices
Cylinders/Cores
Requires the use of a 3902 mortise cylinder (1-1/8" to 1-3/8"), sold separately
Escutcheons
3" x 14 5/8" (76 mm x 38 mm)
Finishes
US32D
Functions
05 - Entrance by thumb piece. Key locks or unlocks thumb piece.
Handing
Specify when ordering
Projection
1-3/4" (44 mm)
Pull Overall
6" (152 mm)
Warranty
Five-years

Template Files

  Name Download File type
47 PT_47BT Pull Plate Template - T-ED1701.pdf 108 KB
.pdf

Instructions

  Name Download File type
47PT and 47BT Pull Plate Instructions - I-ED01700.pdf 143 KB
.pdf

Related Files

  Name Download File type
How to Order EXITS 4700 - ED_4700_HTO_v15.42.pdf 701 KB
.pdf
