• Most preferred method to keep HS4 control units and power supplies organized and secured in a single location
• Enclosure and mounting backplane (included) and up to five (5) HS4 control units (not included)
• Removable backplane allows the installer to configure, layout, and test prior to on-site installation

• CE approved,
• UL294 Listed - Access Control System Units

ENCLOSURE & ENVIRONMENTAL:

• Wall mount for indoor use,
• Operating temperature: 32°F to 120°F
• Storage temperature: -4°F to 158°F
• 16 AWB powder-coated steel enclosure
• Single 2" center knockout on the top of the enclosure
• Sixteen (16) two-stage knockouts for 0.75" or 1" conduit
• 21.5" (W) x 27.25" (H) x 6.5" (D)
• Approximate weight: 37.1 lbs.

INCLUDED CONTENTS:

• Enclosure
• Power supply
• Voltage regulator
• Dual input power distribution module
• Access power controller
• Removable mounting backplane
• One (1) cam lock
• One (1) Tamper switch
• Mounting hardware

DUAL INPUT POWER DISTRIBUTION MODULE:

• 2-679-1100:
• Designed to steer the power from either two (2) low voltage AC or DC power sources,
• Power is distributed over a total of eight (8) fused protected outputs

ACCESS POWER CONTROLLER2-679-0997:

• Converts  one (1) 12 to 24 VAC or VDC input into four (4) independently controlled fuse protected outputs
• Power outputs can be converted to dry form “C” contacts
• Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc., and will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc.
• Outputs will operate both in Fail-Safe or Fail-Secure modes
• Designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock/accessory power
  FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selected for any or all of the four (4) outputs

ACCESS POWER CONTROLLER 2-679-0998:

• Converts one (1) 12 to 24 VAC or VDC input into eight (8) independently controlled fuse protected outputs
• Power outputs can be converted to dry form “C” contacts
• Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc., and will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc.
• Outputs will operate both in Fail-Safe or Fail-Secure modes
• Designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock/accessory power
• FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selected for any or all of the four (4) outputs

NOTES:

• Control Units not included.

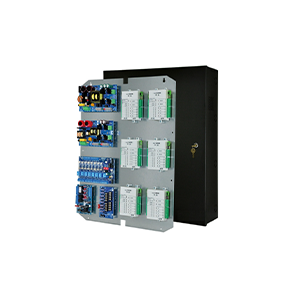

10-Door HS4 Power Supply Enclosure

1 Year
