UL C/US Listed: True
Contact Hager for Price



ANSI A51011B Grade 1 for 150-pound doors, UL


9/32" minimum hinge side plus standard lockside clearance

Door Reinforcement
Wood - None required up to 200 lbs. For metal doors, a 1/8" (3 mm) thick reinforcement plate is recommended along the hinge edge for proper thread engagement of the adjustment studs.
Fastener Size

#10-24 x 5/8" S/S Dril-Kwik® (metal frame), #1/4-32 x 3/4" S/S machine fastener (used with adjustment stud), # 7/16-20 x 1-3/8" S/S adjustment stud (metal/wood door)



Fire Rating
Up to 3 hr. metal and 90 min. wood composite
Frame Reinforcement
None required to 200 lbs. Heavier weight use 16-gauge channel.

79", 83", 85", 95", 119"

Length Options

Standard and Custom


14 Ga. (0.075") Type 304 Stainless Steel

Maximum Door Length
Maximum Door Thickness


Maximum Door Weight

300 lbs

  • For metal doors, a 1/8" (3.2mm) thick reinforcement plate is strongly recommended along the hinge edge for proper thread engagement of the adjustment studs.
  • Any nonstandard length hinge may require a custom hole pattern based on the requested length.
  • Consult Hager Companies to address the field prep for the doors and frames.
  • Tamper resistant hospital tip available.
Optional Features

Tamper Resistant Hospital Tips (HT), Sheared leaf, Raised Barrel (SWAGED), Wide Throw, Security Studs, Dutch Door Prep (DUTCH)

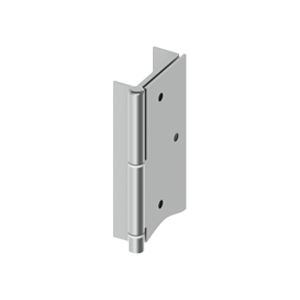

Product Description

Concealed Leaf, Door of Any Material

Special Features

1/4" (6.3 mm) diameter Stainless Steel Pin. Dual 6/6 Nylon bearings between each knuckle. Door edge protection lip (both faces of door). Not recommended for doors with a beveled edge on the hinge side. 1/16" (1.6 mm) inset.


Related Files

Size Details
